Backflow Testing and Prevention: Why It's Required and How Often

If you’ve received a letter from your water utility about annual backflow testing, you’re not alone. Many homes with irrigation systems, boilers, or fire sprinklers must test a backflow prevention assembly each year to protect drinking water.

H.I.S. Plumbing handles backflow testing, repairs, and recertification with certified testers, calibrated gauges, and on-time reporting to the authority that requires it. If something fails, we explain your options and keep you moving toward compliance—without stress.

What Is Backflow and Why It Matters 💧

Backflow is the unwanted reversal of water flow that can pull or push contaminated water into clean drinking lines. It happens in two main ways:

• Back-siphonage: Negative pressure (like a main break or heavy firefighting use) sucks water backward through a cross-connection.
• Backpressure: Higher pressure on a non-potable side (like a boiler or pump) forces water into the potable side.

Why it matters:

• Cross-connection risks: Hoses submerged in buckets, irrigation with fertilizers, boiler chemicals, or even lawn sprinkler heads sitting in puddles—all can become contamination sources.
• Contaminants: Fertilizers, pesticides, bacteria, soaps, and heating system chemicals can enter your home plumbing or the public main.
• Public health: One failure can impact many homes. Utilities require regular testing to keep the community safe.

Common backflow prevention devices you’ll see:

• RPZ (Reduced Pressure Zone) assembly: High-hazard protection with a relief valve that discharges when there’s a problem.
• Double-check valve assembly (DCVA): Two check valves in series for medium-hazard applications.
• Pressure vacuum breaker (PVB) or spill-resistant vacuum breaker (SVB): Often used on irrigation systems to protect against back-siphonage.

Authoritative standards and guidance:

• EPA Cross-Connection Control Manual
• American Water Works Association (AWWA) M14, Recommended Practice for Backflow Prevention and Cross-Connection Control
• USC Foundation for Cross-Connection Control and Hydraulic Research (USC-FCCCHR) field test procedures
• Uniform Plumbing Code (UPC) and International Plumbing Code (IPC)

Who Needs Testing ✅

Many properties have at least one assembly that must be tested on a schedule set by local code and water providers. You likely need testing if you have:

• Lawn or landscape irrigation systems
• Hydronic heating/boilers with an automatic fill line
• Fire sprinkler systems or standpipes
• Private wells or auxiliary water supplies connected to plumbing
• Commercial kitchens, soda machines, medical equipment, or labs (for businesses)
• Pools, decorative fountains, or chemical feed systems tied to potable water

How often:

• Most utilities require annual testing for RPZ, DCVA, PVB, and similar assemblies.
• Some high-risk sites (hospitals, food processing, labs) may have more frequent schedules.
• Many cities send notice letters with a due date. If you didn’t receive a letter but have a device, you still may be required to test annually.

Paperwork and fees:

• City-specific forms and submittal portals vary.
• Some jurisdictions require the tester to submit results directly and pay a filing fee.
• Tagging the device with pass/fail data and the next due date is standard.

H.I.S. Plumbing handles the documentation step-by-step, including direct submission where required and sending reminders before your next due date.

Problem/Scenario: A Typical Backflow Notice 📬

Picture this: You find a letter from your water utility. It lists a serial number, location (“irrigation—front yard”), and a testing deadline. Maybe the device is in an above-ground enclosure, or it’s a bronze assembly near a hose bib. You’re asked to:

• Hire a certified tester
• Submit results by a specific date
• Fix failures and retest if needed

If you ignore the letter, the utility may issue fines or, in some cases, shut off service. The good news: testing is usually quick, and most devices pass or need simple rebuild parts to meet standards.

Quick Safety Checklist for Homeowners 🛡️

• Do not bypass or remove your backflow assembly. It’s your safety valve.
• If you see constant leaking from an RPZ relief port, call for service. It can indicate a failed check or debris in the seat.
• If water tastes or smells off after a main break or pressure event, contact your utility and call emergency plumbing near you.
• Keep the area around the assembly clear: no mulch piled against it, no landscaping blocking access.
• In freezing climates, protect outdoor devices before the first hard freeze: drain, insulate, or use a heated enclosure.
• Know your shutoff valves. If a device bursts in a freeze, isolate water quickly and call H.I.S. Plumbing.

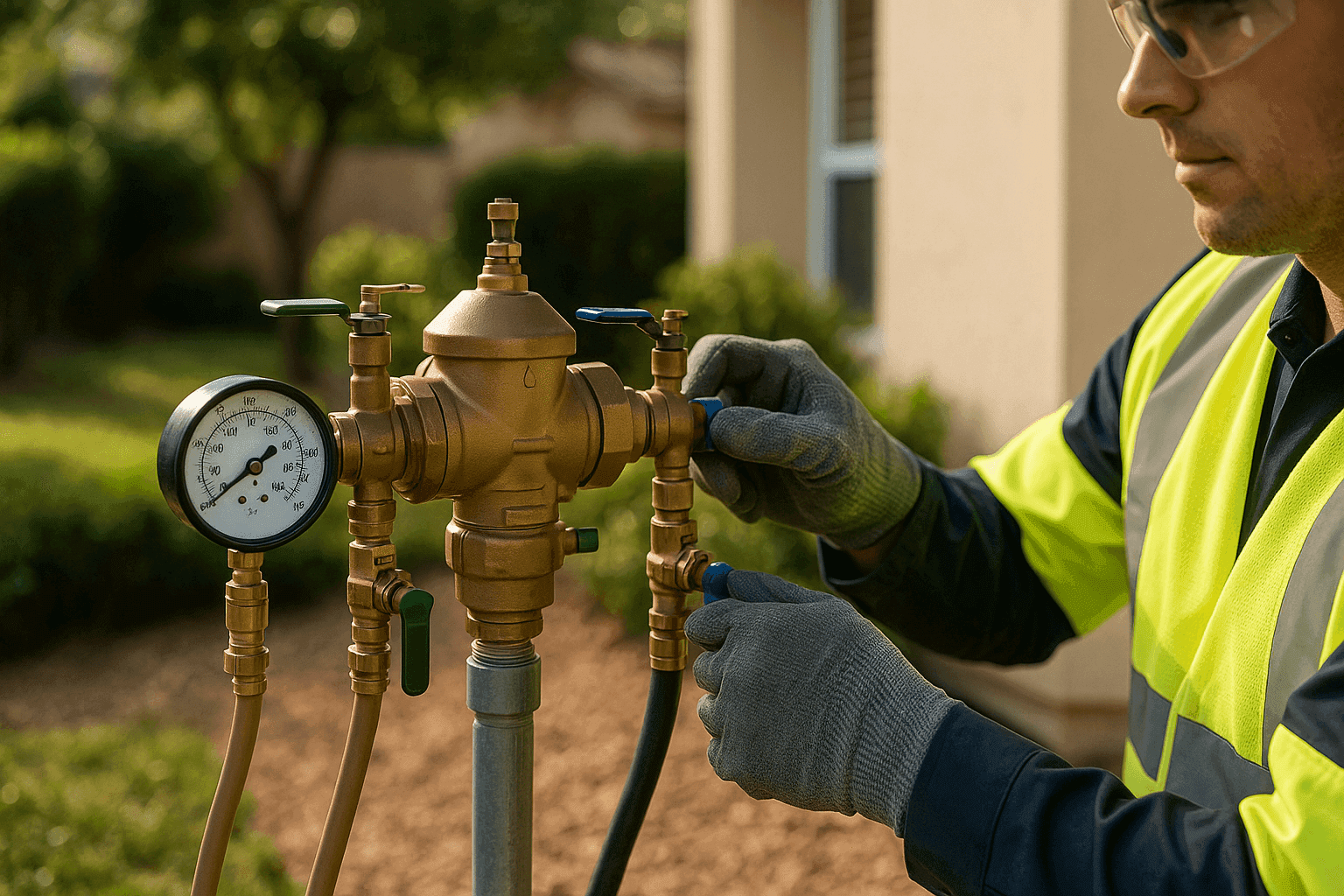

The Testing Process: What to Expect from Start to Finish 🧪

Here’s how certified backflow testing works under recognized procedures (USC-FCCCHR/AWWA):

1. Check the setup

• Identify the assembly type (RPZ, DCVA, PVB), size, orientation, and serial number.
• Verify proper installation: height, clearances, valves accessible, correct orientation (horizontal/vertical as allowed), and no illegal bypass lines.
• Confirm the hazard classification and whether the device still matches the use (for example, irrigation with fertilizer injection may require RPZ rather than DC).

1. Shutoff and test kit setup

• Shut isolation valves (upstream/downstream) to place the device in a test-ready condition.
• Attach a calibrated differential pressure gauge per the device type and test sequence.
• Bleed air from hoses and ensure accurate readings.

1. Perform device-specific tests

• DCVA: Measure the differential across each check valve. Each check must hold a minimum pressure to pass.
• RPZ: Measure check valve tightness and relief valve opening point. The relief valve must open at the required differential pressure and close properly.
• PVB: Verify air inlet opens at the correct pressure and check valve tightness.

1. Interpret results and document

• Record valve numbers, readings, pass/fail status, and any observations (debris, chatter, slow-closing checks).
• Tag the device with the date, tester ID, and outcome.
• Submit test results to the city or water district. Many jurisdictions require testers to report directly via an online portal.

1. If the device fails

• Explain the cause: worn rubber parts, fouled seats, spring fatigue, freeze damage, or installation issues.
• Offer repair options: rebuild kits (rubbers, springs, seats) are common, especially for RPZs and DCVAs.
• Perform repairs, then retest for certification. If the device cannot be repaired reliably, recommend replacement with a code-compliant assembly.

Timing

• Most residential tests take 20–45 minutes if the device is accessible and passes. Repairs add time based on parts and complexity.

Quality controls

• H.I.S. Plumbing uses calibrated gauges with up-to-date, NIST-traceable certificates.
• Our testers maintain current certifications recognized by local authorities.
• We keep copies of calibration certificates and test forms for your records.

DIY vs. Call a Pro 🔧

What you can do:

• Keep the assembly accessible and protected from damage.
• Insulate or drain outdoor devices before freezing weather.
• Look for visible leaks, broken enclosures, or missing caps.
• Note any changes to your system (fertilizer injection, new boiler, added zones) and share them with your plumber.

What you should not do:

• Don’t adjust check or relief springs, remove covers, or attempt to “plug” an RPZ relief vent.
• Don’t use an uncalibrated gauge or submit your own test unless you’re certified and authorized by your jurisdiction.
• Don’t install unapproved devices in pits or locations not allowed by code.

Why call H.I.S. Plumbing:

• Certified backflow testers
• Calibrated equipment
• Direct reporting to authorities
• Reminder service before due dates
• Same-day and emergency plumbing scheduling when urgent issues arise

If you need Emergency Plumbing near you for a leaking RPZ or burst piping, we’re available 24/7.

What Pros Do On Arrival 🧰

Here’s our typical site workflow:

• Verify notice details: serial number, location, due date, and local forms or portal requirements.
• Confirm device type and application: irrigation, boiler, well tie-in, or fire protection.
• Inspect installation: height above grade, freeze protection, relief valve discharge clearance for RPZs, and required air gaps on drains.
• Check hazard classification: If the property use changed (e.g., fertilizer injection added), we’ll recommend the right assembly type.
• Test per procedure: Conduct all steps using a calibrated gauge, document readings, and tag the device.
• Repair if needed: Many failures are resolved with a rebuild kit and cleaning the valve body seats.
• Retest and certify: Submit results to your water provider and email you a copy for your records.
• Provide next steps: If the assembly is obsolete, damaged by freeze, or repeatedly failing, we’ll explain replacement options that meet code.

Prevention and Maintenance: Keep Your System Passing 🌡️

Good prevention reduces failures, leaks, and emergency calls.

Freeze protection for outdoor assemblies

• Insulate exposed piping and use an approved heated enclosure for devices that must remain active during winter.
• For irrigation with PVB or RPZ, winterize before the first hard freeze: shut supply, drain the device, and blow out lines if your system requires it.
• Never wrap an RPZ relief valve tightly in plastic. It must discharge safely; blocking the vent can flood the device or your home.

Placement and enclosures

• Maintain required clearance around the assembly so it can be tested and repaired.
• Keep the device above grade as required by code (RPZ must be above grade and never submerged).
• Use enclosures rated for your climate; cheap covers often fail in severe cold or UV.

Periodic inspections and record-keeping

• Do a visual check each season: look for corrosion, leaks, or damage.
• Keep your last test report, device serial number, and due date handy.
• Update records when equipment changes (new irrigation zones, added chemical injectors, boiler replacement).

Scheduling and reminders

• Annual testing keeps you compliant and avoids penalty notices.
• H.I.S. Plumbing can schedule your next test in advance and send reminders so it never slips through the cracks.

Costs & Time Factors: What Influences Price and Duration ⏱️

While exact pricing depends on your location and device count, here are common ranges and variables:

• Testing only (residential, one device): Often in the low to mid hundreds or less, depending on travel, access, and city fees.
• Additional devices: Adding a second or third assembly usually reduces the per-device cost.
• Repairs: Rebuild kits typically range from modest to a few hundred dollars, plus labor. Complex RPZs or large-diameter assemblies cost more.
• Replacement: If a device is obsolete or heavily corroded, replacing the assembly may be the best long-term value.
• City fees: Some municipalities charge filing or certification fees.
• Access: Buried, obstructed, or locked devices add time.
• After-hours/urgent testing: Emergency or weekend service is available; rates vary based on urgency.

Typical time on site:

• Pass with easy access: 20–45 minutes per device.
• Repair and retest: Add 30–120 minutes depending on parts availability and device size.

We’re happy to explain your options before any work begins and to provide documentation you can share with your utility or property manager.

When It’s an Emergency 🚨

Backflow assemblies protect your home and the public. Treat these situations as urgent:

• A ruptured or frozen device with active leakage
• An RPZ relief valve that is discharging heavily and won’t stop
• Suspected contamination or odd taste/odor following a main break or firefighting event
• A broken enclosure in sub-freezing weather with water present in the assembly

Shut off the upstream valve if you can do so safely, keep people away from the area, and call H.I.S. Plumbing for emergency plumbing service. If you believe water quality is compromised, contact your water utility immediately.

FAQ: Backflow Testing and Prevention ❓

Q: How often do I need to test my backflow device? A: In most areas, annually. Certain high-hazard sites may require more frequent testing. Always follow your water provider’s schedule and your local plumbing code (UPC/IPC) requirements.

Q: How long does a test take, and will my water be off? A: Most tests take 20–45 minutes per device. Irrigation or boiler supply is briefly isolated during the test. Your main domestic supply is often unaffected unless the assembly is on the service line.

Q: I’m on a private well. Do I still need backflow protection? A: If your well system connects to your home plumbing or interconnects with a public supply, protection is usually required. Requirements vary—check your local code and water authority.

Q: Can I put an RPZ in a pit or below grade to hide it? A: No. RPZs must be installed above grade with proper drainage clearance for the relief valve. DCVAs and PVBs also have specific installation rules; follow the manufacturer’s instructions and code.

Local/Seasonal Considerations 🌦️

Local forms and fees

• Utilities vary in how they accept test reports: some use online portals; others require signed PDFs or mailed forms.
• Filing fees and deadlines differ by city. A missed due date can lead to fines or water service interruptions.

Climate matters

• Freeze zones: Outdoor PVBs and RPZs must be winterized, drained, or housed in heated enclosures. Freeze-damaged bodies and cracked bonnet assemblies are common in late winter and early spring.
• Hot/dry climates: UV exposure and high temperatures can degrade rubber faster. Inspect enclosures and gaskets seasonally.
• Coastal areas: Salt air accelerates corrosion. Regular inspection and timely rebuilds extend device life.

Construction and system changes

• Adding fertilizer injectors, pressure boosters, or new irrigation zones can change your hazard level. We’ll verify that your assembly type still matches your use.

Fire protection reminders

• Fire lines with backflow assemblies need regular testing without taking the system offline longer than allowed. Coordinate timelines to keep your property protected and compliant.

Why Authorities Require Backflow Testing

Testing protects the community water supply. It confirms that check valves seal tight, relief valves open at the right pressure, and assemblies work as designed under real conditions. Guidance from the EPA, AWWA M14, USC-FCCCHR, and plumbing codes (UPC/IPC) all point to one goal: safe drinking water for everyone.

How H.I.S. Plumbing Helps You Stay Compliant

• Certified testers recognized by your local authority
• Calibrated, NIST-traceable gauges
• Direct submission of results to the city or water district
• Clear documentation for your records
• Courtesy reminders before your next due date
• Repair and rebuild capability when a device fails testing
• 24/7 emergency plumbing response when urgent issues arise

Whether you’re managing a single-family home with irrigation, a multi-unit building with a boiler, or a small business with multiple assemblies, we make testing straightforward and timely.

Authoritative references we follow:

• EPA Cross-Connection Control Manual
• AWWA M14, Recommended Practice for Backflow Prevention and Cross-Connection Control
• USC Foundation for Cross-Connection Control and Hydraulic Research (USC-FCCCHR) field test procedures
• UPC/IPC requirements and your local utility’s cross-connection control program
