Gas Line Installation and Safety Checks: Permits, Tests, and Red Flags

A safe gas system isn’t luck—it’s planning, permits, proper materials, and measured testing. If you’re adding a range, moving a water heater, or upgrading a meter, there are steps that protect your home and everyone in it.

H.I.S. Plumbing installs and repairs gas lines every day. We’re friendly, code-focused, and prepared for emergencies. This guide walks you through permits, materials, testing, and the warning signs you should never ignore.

The Problem/Scenario: Why Gas Work Demands a Plan

Gas lines power everyday comfort—heat, hot water, cooking. But gas is combustible. A loose fitting, undersized line, or blocked vent can turn a routine project into a safety risk.

Common situations:

• Adding a gas range or dryer to a home that never had one
• Converting from electric to gas heat or water heating
• Relocating appliances during a kitchen or bath remodel
• Extending a line to an outdoor BBQ or generator
• Upgrading a meter for higher demand

Each scenario has rules for sizing, materials, supports, shutoff valves, sediment traps, bonding, and testing. Installing “what looks right” is not enough. Codes exist because pressure, combustion air, and venting all interact. We’ll show you how to do it the right way.

When You Need a Permit 📝

Most jurisdictions require a permit for gas work. Think “new, moved, or more load.”

You likely need a permit when:

• Installing a new gas line or branch line
• Relocating an existing line or appliance
• Increasing gas load (adding a new appliance, larger BTU demand)
• Meter upgrades or regulator changes
• Running gas to an outdoor appliance, pool heater, or generator
• Significant repairs that change routing, sizing, or materials
• Converting from propane to natural gas (or vice versa)

Typical permit process:

• Apply with the local authority having jurisdiction (AHJ), usually the building department.
• Submit a simple gas isometric/schematic showing run lengths, materials, fittings, pipe sizes, BTUs, and the location of shutoffs and sediment traps.
• Schedule rough-in and final inspections. Some areas also require a pressure test witnessed by the inspector.
• Don’t cover or bury lines until inspected. Underground lines often need tracer wire and depth verification.

Notes and tips:

• AHJs often follow the International Fuel Gas Code (IFGC) and/or NFPA 54 (National Fuel Gas Code). Local amendments may be stricter.
• Homeowners may be allowed to pull permits for their own residence. If the work is beyond your comfort level, hire a licensed installer.
• Never rely on “the utility already approved it.” Utilities approve meters and service; interior piping is inspected by the AHJ.
• Permit fees vary. Plan for a fee plus the cost of materials, labor, and testing.

Materials and Routing: CSST vs. Black Iron, Bonding, and Safeguards

Choosing materials and routing gas lines is not just preference—it’s code and performance.

Common materials:

• Black iron (schedule 40 steel): Durable, strong, widely used for mains and longer runs. Threaded joints require proper thread sealant rated for gas.
• CSST (corrugated stainless steel tubing): Flexible, speeds installation, reduces fittings inside walls. Must be listed, installed per the manufacturer’s instructions, and bonded to reduce lightning risk.
• Copper (only where allowed): Some jurisdictions prohibit copper for natural gas due to sulfur compounds. Always verify local rules.
• Polyethylene (PE) for underground: Used outdoors only, with tracer wire, proper fittings, and burial depth per code.

Routing priorities:

• Keep runs as straight and short as practical to minimize pressure drop.
• Locate main shutoffs where accessible; appliance shutoff valves must be within 6 feet and in the same room (unless local code states otherwise).
• Protect exposed lines from impact (e.g., in garages or near driveways) with bollards or guard plates.
• Sleeve and seal where lines pass through masonry to prevent damage and corrosion.
• Maintain required clearances from electrical equipment and ignition sources.

Bonding and support:

• Bond CSST with a bonding clamp and appropriately sized conductor to the building’s grounding system per the manufacturer and code. This significantly reduces lightning-related damage risk.
• Support steel pipe with proper hangers at required intervals; don’t rely on drywall or wood screws that can pull out.
• Secure vertical runs to framing and protect when passing through studs with nail plates.

Appliance shutoffs and sediment traps:

• Every appliance needs its own shutoff valve, accessible without moving the appliance far.
• Install a sediment trap (drip leg) ahead of appliance regulators to catch debris and moisture.
• Use approved flexible connectors, sized for the appliance BTUs, not kinked, and not passing through walls, floors, or cabinets unless the connector is listed for that purpose.

Authoritative references:

• International Fuel Gas Code (IFGC)
• NFPA 54 (National Fuel Gas Code)
• Manufacturer installation instructions (these carry the force of code when referenced by listing)

Safety Checks and Testing: How Pros Verify a Safe System 🧪

Testing is the proof that your system is tight and safe. A proper test involves more than a quick sniff.

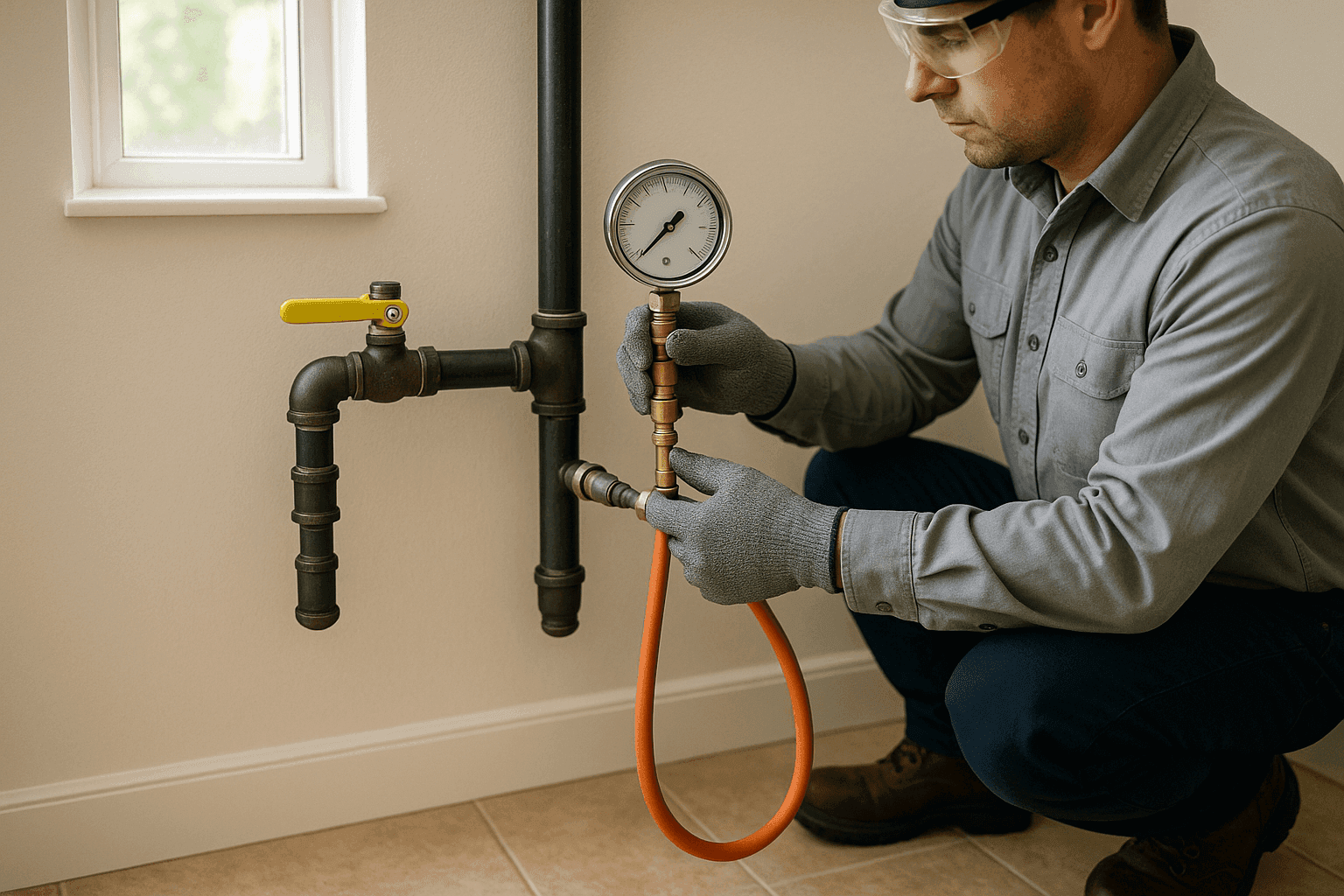

Pressure testing basics:

• New piping is typically tested with air or inert gas (not natural gas) at a pressure specified by the code and the AHJ (often 10–15 psi for residential systems, though some require higher). Never use oxygen.
• The test pressure must hold without drop for a set duration (often 15 minutes or more for residential; duration can scale with system size).
• A calibrated gauge or digital manometer with sufficient resolution is required. H.I.S. Plumbing uses calibrated test equipment and documents readings with photos and timestamps.

Leak detection procedures:

• After passing the pressure test, connections are checked with an approved leak-detection solution (soap test) to reveal bubbling at tiny leaks.
• Electronic combustible gas detectors help locate micro-leaks or confirm readings in tight spaces.
• Joints that leak are disassembled, threads cleaned, reassembled with the correct sealant, and retested.

Appliance checks:

• Confirm each appliance regulator and shutoff is present and oriented correctly.
• Verify BTU rating and pipe sizing match the demand, including concurrent use of multiple appliances.
• Inspect flexible connectors for kinks, dents, or overlength runs.
• Confirm sediment traps are installed and accessible.

Venting and combustion air:

• Fuel-burning appliances need proper venting and enough air for combustion. Without it, carbon monoxide (CO) can build up.
• Verify vent materials, clearances, rise, slope, and termination meet the appliance manual and code.
• Check for backdrafting at draft hoods using smoke or mirror tests; watch for soot or scorching.
• In tight homes, confirm provisions for makeup air (louvered doors, ducted combustion air, or direct-vent appliances).

Documentation and photos:

• We capture gauge readings, test durations, leak-check points, and final conditions in photos.
• Copies of permits, inspection reports, and installation summaries are provided so you know what was done, how it was tested, and where to find shutoffs later.

After Installation: Inspector Sign-Off, Paperwork, and Warranty Basics

• Inspection: The AHJ inspects rough-in before walls close and final after appliances are connected. Don’t cover or bury lines until approved.
• Sign-off: Once approved, we restore service, re-light pilots (if applicable), verify appliance operation, and label shutoffs.
• Documentation: You receive photos, test results, permit numbers, and a simple schematic showing valve locations and appliance BTUs.
• Warranty basics: Product warranties follow the manufacturer. Workmanship terms are clearly written on your invoice. Keep your paperwork for future service or home sale. If you ever need emergency plumbing or gas help later, this documentation speeds diagnosis.

Red Flags Homeowners Should Never Ignore ⚠️

Stop and call a pro if you see:

• DIY connections or fittings that don’t match material type
• Damaged or unbonded CSST (burn marks, kinks, missing bonding clamp)
• Corrosion, flaking, or pitting on black iron, especially in damp areas
• Gas odor (rotten egg smell) indoors or outdoors
• Hissing sound near appliances or meters
• Dead or dying vegetation along a buried gas line path
• Loose or missing support hangers
• Flexible connectors passing through walls or cabinets
• Improvised thread sealants (non-rated tape, dope, or pipe glue)
• Vent pipes that are loose, sagging, or backdrafting
• Soot, scorch marks, or melted plastic near vents or burners
• Appliance rooms that feel unusually warm or stuffy while equipment runs

If any of these appear, treat it seriously. Evacuate if you smell gas, avoid switches and flames, call your gas utility emergency line and 911, then contact H.I.S. Plumbing.

Quick Safety Checklist ✅

Use this simple list once a season or after any appliance change:

• Smell test: No gas odor in mechanical rooms, kitchens, or near meters
• Sound: No hissing near valves or piping
• Sight: No corrosion, kinks, or damaged connectors
• Supports: Piping secured; no sagging spans
• Shutoffs: Labeled and reachable; caps on unused outlets
• Sediment traps: Present at appliances that require them
• Venting: No loose joints; no backdraft (check with a small mirror for condensation or with a smoke source)
• CO detectors: Installed on each floor with fresh batteries
• Combustion air: Vents or openings clear of dust, storage boxes, or insulation
• Paperwork: Keep permits, inspection reports, and appliance manuals in one place

DIY vs. Call a Pro

Some tasks are homeowner-friendly; others cross into safety-critical work.

Reasonable homeowner tasks:

• Replacing a gas range with the same type using an existing, properly sized, code-compliant connection—if you’re comfortable, use an approved connector and leak-check properly. Always verify local rules.
• Turning gas off at the appliance shutoff for maintenance, then soap-testing when restoring service.
• Keeping vents and combustion air openings clear.

Tasks to leave to licensed installers:

• New lines, reroutes, or any work requiring sizing calculations
• CSST installation and bonding
• Meter upgrades or regulator changes (coordinate via the utility and AHJ)
• Underground gas lines (PE piping, tracer wire, burial depth, corrosion protection)
• Work inside walls or slabs
• Any pressure testing beyond a simple connector check

Why it matters:

• Codes protect you from silent failures like undersized piping or improper venting.
• Insurance companies and home buyers often ask for permits and inspection records.
• H.I.S. Plumbing uses calibrated gauges and follows IFGC/NFPA 54 and manufacturer instructions for fittings, torque, and testing.

What Pros Do on Arrival: Our Step-by-Step Approach 🧰

When you call H.I.S. Plumbing, here’s what to expect:

1. Initial safety scan

• We check for gas odor, hissing, or obvious hazards.
• If there’s a strong odor, we ventilate, shut off gas at the meter if needed, and coordinate with the utility.

1. Interview and inspection

• We ask about appliance additions, performance issues, past work, and any DIY attempts.
• We inspect visible piping, supports, connectors, and venting.

1. Sizing and layout

• We review appliance BTUs, run lengths, and fittings.
• If you’re adding a new load, we calculate pipe sizes and identify where to tie in.

1. Permit and plan

• We prepare the layout and pull the required permit with the AHJ.
• You’ll see a clear plan: materials (black iron or CSST), support methods, shutoff and sediment trap locations, bonding, and test steps.

1. Installation

• We cut, thread, and install piping or properly route CSST per the manufacturer’s guide.
• We add support hangers, sleeves, and protective plates where needed.
• We bond CSST and verify continuity as required.

1. Testing and verification

• We isolate the new section and perform an air or inert gas pressure test with a calibrated gauge.
• We document the pressure, duration, and results with photos.
• After passing, we complete soap testing at every joint and connection.
• We verify venting and combustion air for appliances.

1. Restore and educate

• We relight pilots if applicable, check for proper burner operation, and verify CO detectors are present.
• We label shutoff valves and explain what we installed, where your valves are, and how to shut off gas in an emergency.

1. Inspection and sign-off

• We schedule the AHJ inspection and attend if required.
• You receive photos, test records, and permit details for your files.

Prevention & Maintenance: Keep Your System Safe Year-Round 🛡️

Simple habits keep gas systems reliable:

• Annual quick check: Look at visible piping, connectors, and vents. Listen and sniff.
• Clear the area: Don’t store boxes or chemicals around furnaces or water heaters.
• Replace aging connectors: If a flexible connector is old, bent, or damaged, replace it with a listed product of the correct length and capacity.
• Service appliances: Furnaces, boilers, and water heaters benefit from yearly service by qualified technicians to keep burners clean and draft correct.
• Label shutoffs: Tag appliance valves and the main meter valve. Teach family members how to use them.
• Monitor BTU changes: Adding a new appliance? Re-evaluate pipe sizing before connecting.
• Protect underground lines: If you dig, call 811 before excavation. Maintain marker tape and tracer wire access points where used.
• Earthquake or movement zones: Consider an approved seismic shutoff valve where permitted. Verify CSST bonding is intact after storms or renovations.
• Keep records: Store permits, inspection notes, appliance manuals, and our test photos. This helps with insurance, resale, and future service.

Authoritative sources to consult:

• IFGC and NFPA 54
• Manufacturer installation manuals
• Utility company service rules
• Local building department guidelines

Costs & Time Factors: What Affects Price and Schedule ⏱️

Every home is different. The final cost depends on materials, routing, access, length, fittings, inspections, and finish work. Below are planning ranges, not quotes:

Common scenarios:

• Add a short branch line (close to main, open access): Often a half day to a full day, plus permit and inspection scheduling.
• Long interior run with obstacles: One to two days, including supports, wall/ceiling access, and patch-friendly routing.
• CSST runs in finished spaces: Faster install but requires bonding; time depends on access and fixture count.
• Outdoor BBQ or generator stub: Trenching adds time; underground work requires tracer wire, depth checks, and possibly utility coordination.
• Meter upgrade coordination: Scheduling with the utility and inspector can add days to the timeline; the workday itself is often straightforward.
• Pressure test and report only: A shorter visit, but allows time to set and hold tests, document photos, and meet inspectors if required.

What adds cost:

• Long runs, many fittings, tight attic or crawlspace work
• Drywall/finish removal and patch coordination
• Underground trenching, hardscape restoration, and corrosion protection
• Specialty materials (e.g., fire-stop systems, seismic valves)
• Multiple inspections or re-inspections
• After-hours emergency response (available when safety can’t wait)

What saves time and money:

• Clear work areas and known appliance BTU ratings ahead of time
• Having previous permits or plans on hand
• Deciding appliance locations before we start
• Allowing flexible inspection times

If you need “Emergency Plumbing near you,” we’re reachable 24/7 for urgent gas leaks and shutoffs. We’ll stabilize the situation and outline next steps.

When It’s an Emergency: Act Fast, Stay Safe 🚨

If you smell gas or suspect a leak:

• Don’t use light switches, lighters, or phones inside the building.
• Evacuate people and pets immediately.
• If safe, turn gas off at the meter or the exterior tank shutoff.
• From a safe location, call your gas utility’s emergency line and 911.
• Then call H.I.S. Plumbing for immediate support and repair.

Other urgent situations:

• Hissing from piping or meter sets
• Visible damage to piping after a storm or vehicle impact
• Strong odor near buried lines or dead vegetation over a line path
• Appliances that keep tripping CO detectors or show soot buildup

Our team will respond, isolate the hazard, perform leak checks, and coordinate with inspectors so you can get back inside safely.

Materials and Routing Deep Dive: Practical Examples

Kitchen remodel:

• Range moves 10 feet to an island. We calculate pressure drop, extend the line using black iron or CSST, install an accessible shutoff in the cabinet (per code), add a sediment trap, and pressure test the new branch before connection. We prevent the flexible connector from passing through the cabinet base.

Water heater replacement/relocation:

• We verify BTU input, check if the existing line is sized correctly, confirm venting and combustion air, add a sediment trap and shutoff, and test all joints. If upsizing is needed for a tankless unit, we may re-pipe back to the manifold.

Outdoor grill or fire pit:

• We assess distance and load, choose PE for underground runs with tracer wire, bury at proper depth, sleeve where needed, and install a lockable shutoff at the patio. We pressure test, soap test, and tag valves.

Generator connection:

• Load adds up quickly. We calculate worst-case simultaneous demand, size the branch appropriately, and coordinate with the utility for meter capacity. We add signage and an exterior shutoff.

Safety Checks and Testing: Step-by-Step Field Method

• Isolate and pressurize: Cap appliances or isolate the new section. Pressurize to code-required levels with air or inert gas using a calibrated gauge.
• Stabilize: Allow temperature and pressure to stabilize before starting the timed hold. Document the start reading.
• Hold and monitor: Watch for drift. Document end reading and duration with photos.
• Soap test: Brush or spray approved leak solution on every joint, union, and valve. Look for bubbles that grow.
• Detector sweep: Use an electronic combustible gas detector along concealed runs, behind appliances, and near unions.
• Vent and combustion air: Verify correct materials, slope, termination clearances, and makeup air provisions. Check for backdraft with a simple smoke test at the draft hood.
• Restore: Turn on gas, purge air safely, relight pilots (if applicable), and verify appliance performance.
• Final documentation: Save photos, pressure logs, and valve locations in your job folder. Provide copies to the homeowner.

H.I.S. Plumbing uses calibrated test equipment and provides photo documentation with your permit and inspection details.

FAQ: Straight Answers to Common Questions ❓

Q: Do I need a permit to replace a gas cooktop with the same size?

• Many jurisdictions allow like-for-like appliance swaps without a permit, but some still require one. If the connector, valve, or routing changes—or if BTU load increases—you typically need a permit. Check with your AHJ.

Q: How long should a gas pressure test hold?

• It depends on the code and system size. Residential tests often hold 15 minutes or more at a specified pressure (commonly around 10–15 psi, sometimes higher). The AHJ and manufacturer rules prevail.

Q: Can CSST be used outdoors?

• CSST is primarily intended for indoor use unless the product is listed for outdoor exposure and installed per the manufacturer’s instructions. For underground or exterior runs, listed materials (e.g., PE) are typically required. Always verify listings and local code.

Q: Is soap testing enough?

• Soap testing is essential for joints, but new or modified systems should also undergo a formal pressure test. Electronic detectors add another layer of safety—especially in tight spaces.

Q: How close can gas piping be to electrical wiring?

• Maintain separation where possible and follow both fuel gas and electrical code rules for clearances, bonding, and protection. Avoid contact with sharp edges and protect piping with nail plates through studs.

Q: Do I need a sediment trap at every appliance?

• Many appliances require them (furnaces, boilers, water heaters). Some listed equipment might not. Follow the appliance manual and NFPA 54/IFGC.

Local and Seasonal Considerations 🌦️

Climate and geology affect gas safety:

• Freeze-thaw cycles: Soil shifts can stress buried lines. Use proper depth, bedding, and tracer wire.
• Seismic regions: Bond CSST per the manufacturer and consider an approved seismic shutoff valve. Secure appliances and venting to resist movement.
• Coastal and humid areas: Corrosion risks rise. Choose corrosion-resistant materials and inspect supports and hangers regularly.
• Heavy snow and wind: Keep vent terminations and fresh air intakes clear of snow drifts. Verify vent caps and supports are secure.
• Wildfire zones: Maintain clearances around meters and piping. Use metal mesh where allowed to reduce ember intrusion at vents.
• High elevation: Appliance derating may change sizing and venting needs. Follow the appliance manual for altitude adjustments.

Wherever you live, follow the AHJ’s adopted code (often IFGC and NFPA 54) and the appliance manufacturer’s instructions.

Trust the Process and the Paper Trail

Gas work should never be a mystery. With H.I.S. Plumbing, you get:

• Licensed, insured installers who follow code and manufacturer instructions
• Calibrated test equipment and documented pressure tests
• Photo records of gauges, fittings, and finished work
• Copies of permits and inspection sign-offs
• Clear explanations of what was done and how to shut things off in an emergency

We handle the details so you can enjoy safe, reliable heat, hot water, and cooking—without guesswork.

Bringing It All Together

• Permits protect you and make resale smoother.
• Materials matter: black iron for durability, CSST for smart routing—with proper bonding.
• Testing proves safety: pressure tests, soap checks, detector sweeps, and vent verification.
• Red flags mean stop and call: odor, hissing, damaged CSST, corrosion, dead vegetation.
• Keep it safe long term: regular checks, clear vents, updated connectors, and good records.

If you need installation, a safety check, or emergency help, H.I.S. Plumbing is ready. We handle gas lines, leak detection, water heater hook-ups, and more—day or night. When you need emergency plumbing near you, we’re here to help.

Call H.I.S. Plumbing now — or reach us anytime at  1-888-778-7167 .
